Product Code: LZBLMAR064LOUVER
Architectural louvered LED bollard light designed for glare-free, elegant pathway and landscape lighting — durable, IP65, and anti-vandal.
The Marceno Bollard Light (LZBLMAR064LOUVER) is a premium louvered architectural LED Bollard Light, crafted to deliver elegant, glare-free Pathway Lighting and Landscape Lighting for high-end commercial, residential, and public projects. Its robust square-profile body (150x150mm) and iconic layered-louver diffuser design create a soft, controlled light with exceptional visual comfort—ideal for modern parks, driveways, resorts, and plazas.

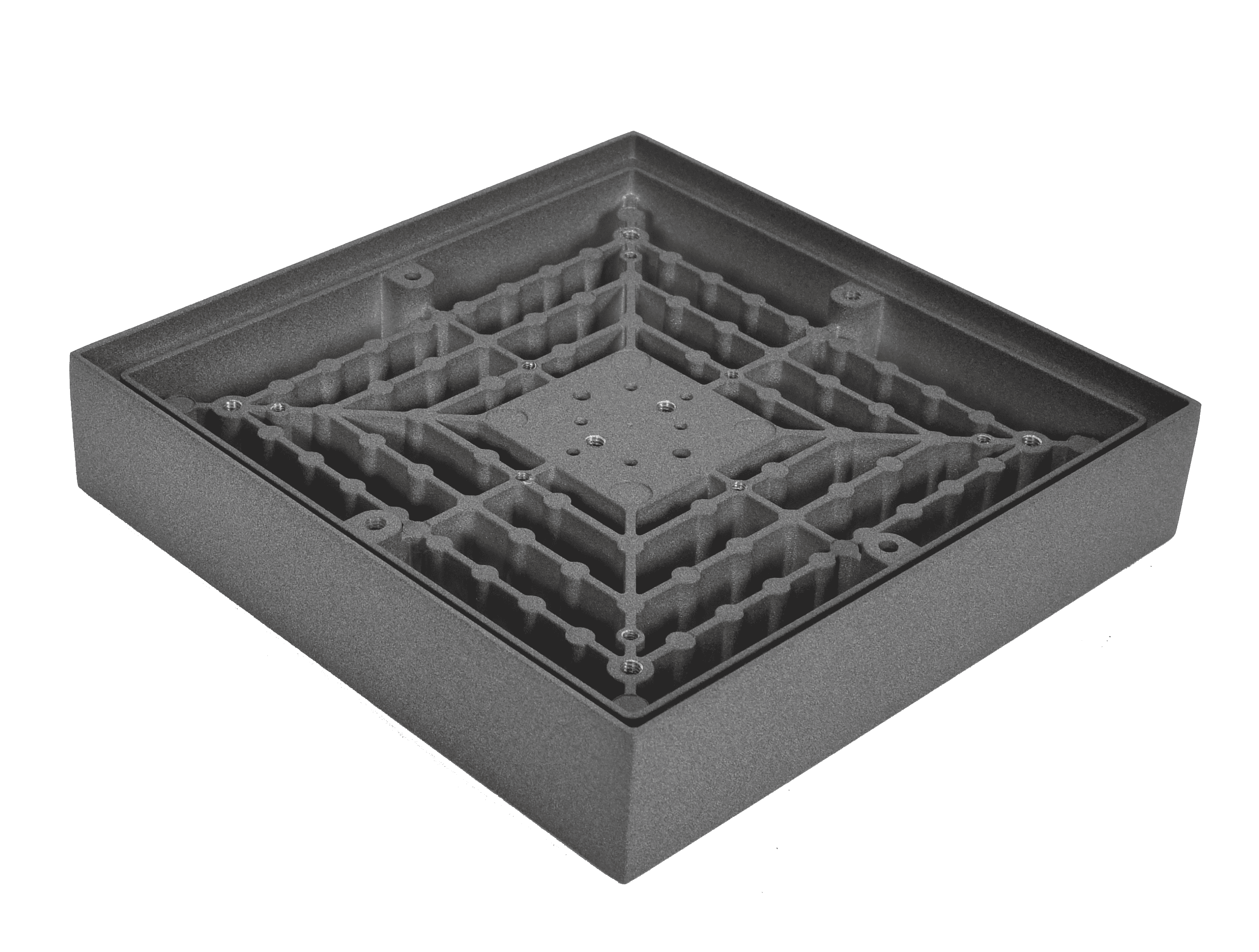

Engineered with a heavy-duty die-cast aluminum body, Marceno features an injection-molded anti-UV PC diffuser and proprietary heatsink for lasting performance and minimal maintenance. The entire head module is removable, enabling rapid access. Internally, it uses only CREE, Osram, or Lumileds LED chips, powered by your choice of Meanwell, Philips, Tridonic, or Eaglerise drivers—ensuring world-class reliability, easy sourcing, and project documentation.
Every unit includes anti-rust mounting, an IP65/IP66 waterproof driver box, tamper-proof anchor plate, and full powder-coat options for every project requirement. Marceno is available in 400/600/800/1000mm heights and standard or custom colors—making it an ideal Outdoor Bollard Light for architectural, garden, and pathway lighting applications.
Contemporary louvered LED Bollard Light with 150x150mm square body, layered PC diffuser
CREE / Osram / Lumileds COB LED (LOI-ready, tender-compliant, project grade)
Driver options: Meanwell, Philips, Tridonic, Eaglerise (universal voltage, surge-protected)

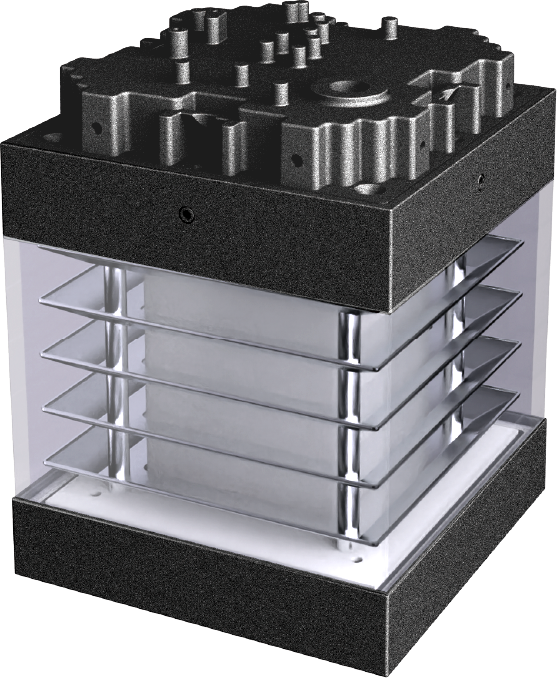

Entire modular head is quickly removable—easy driver/LED service

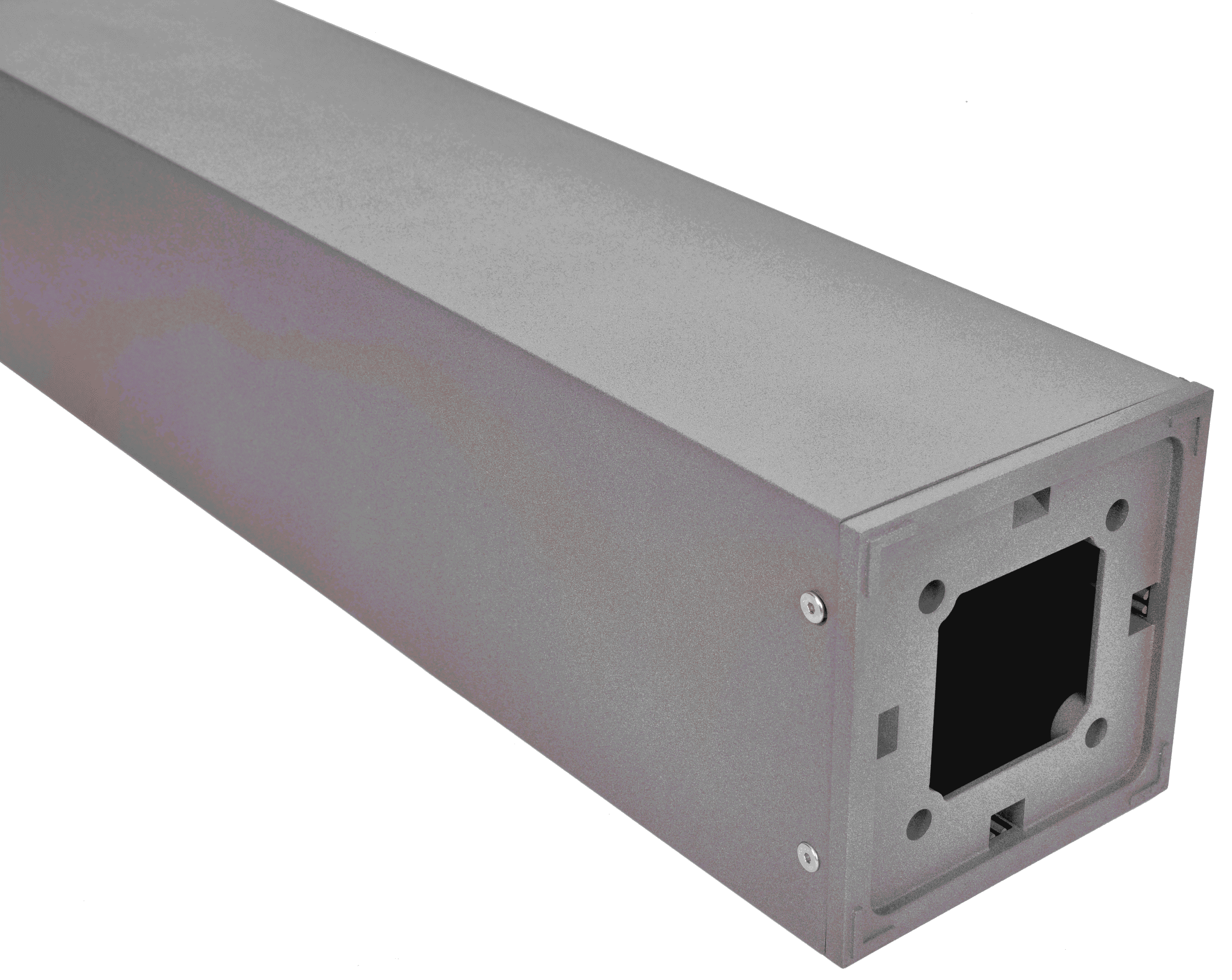

Die-cast aluminum, proprietary heatsink, vandal-proof assembly

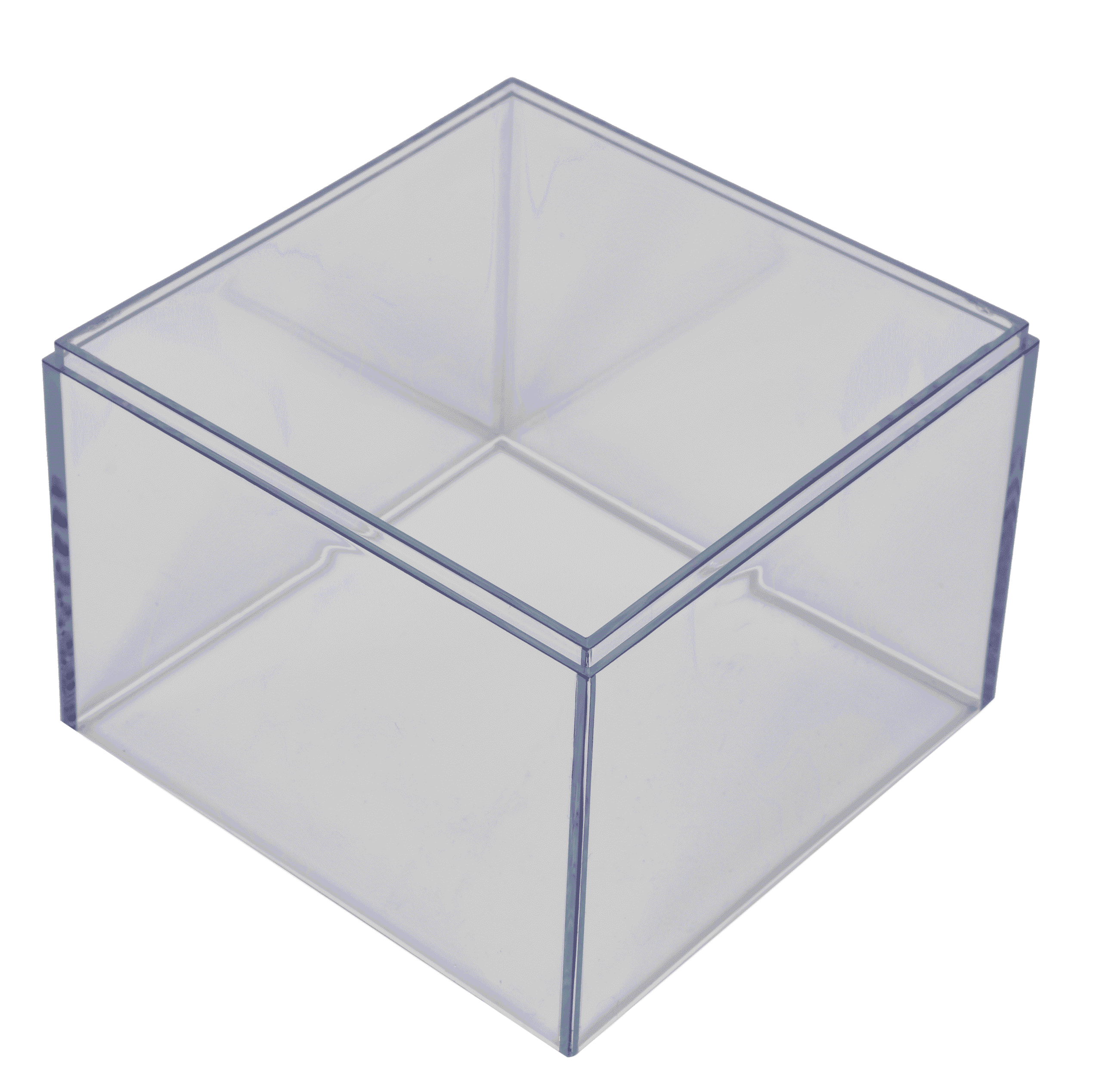

Injection-molded PC louver for glare-free, architectural lighting
IP65 waterproof, IK08 impact-resistant, and rust-protected design
Anti-rust mounting plate, tamper-resistant, all-weather rugged
Finishes: Black, Silver, RAL7043, RAL7016, or custom powder-coat
5-year Luzion warranty (LED, driver, housing)
| Parameter | Specification |
|---|---|
| Product Code | LZBLMAR064LOUVER |
| Brand | Luzion Lighting Pvt. Ltd. |
| Body/Profile | 150 × 150mm square |
| Heights | 400mm, 600mm, 800mm, 1000mm |
| LED Chip | CREE / Osram / Lumileds |
| Driver | Meanwell / Philips / Tridonic / Eaglerise |
| Wattage | 10W / 15W / 20W / 25W / 30W |
| Lumen Output | 500Lm – 1500Lm |
| Color Temperature (CCT) | 2700–6500K, selectable |
| CRI | ≥80 |
| Diffuser/Lens | Injection-molded anti-UV PC louver, glare-free |
| Mounting Base | 150 × 150mm, 4xØ10mm anchors (80/150mm pitch) |
| Driver Box | IP66 protected, modular accessible |
| Finish | Black, Silver, RAL7016, RAL7043, custom powder-coated |
| IP/IK Rating | IP65 Waterproof, IK08 Impact Resistant |
| Warranty | 5 years (all components) |
Profile: 150 × 150mm square
Available Heights: 400mm, 600mm, 800mm, 1000mm
Mounting Plate: 150 × 150mm, 4ר10mm anchor
Removable Head: Modular, easy driver/LED access

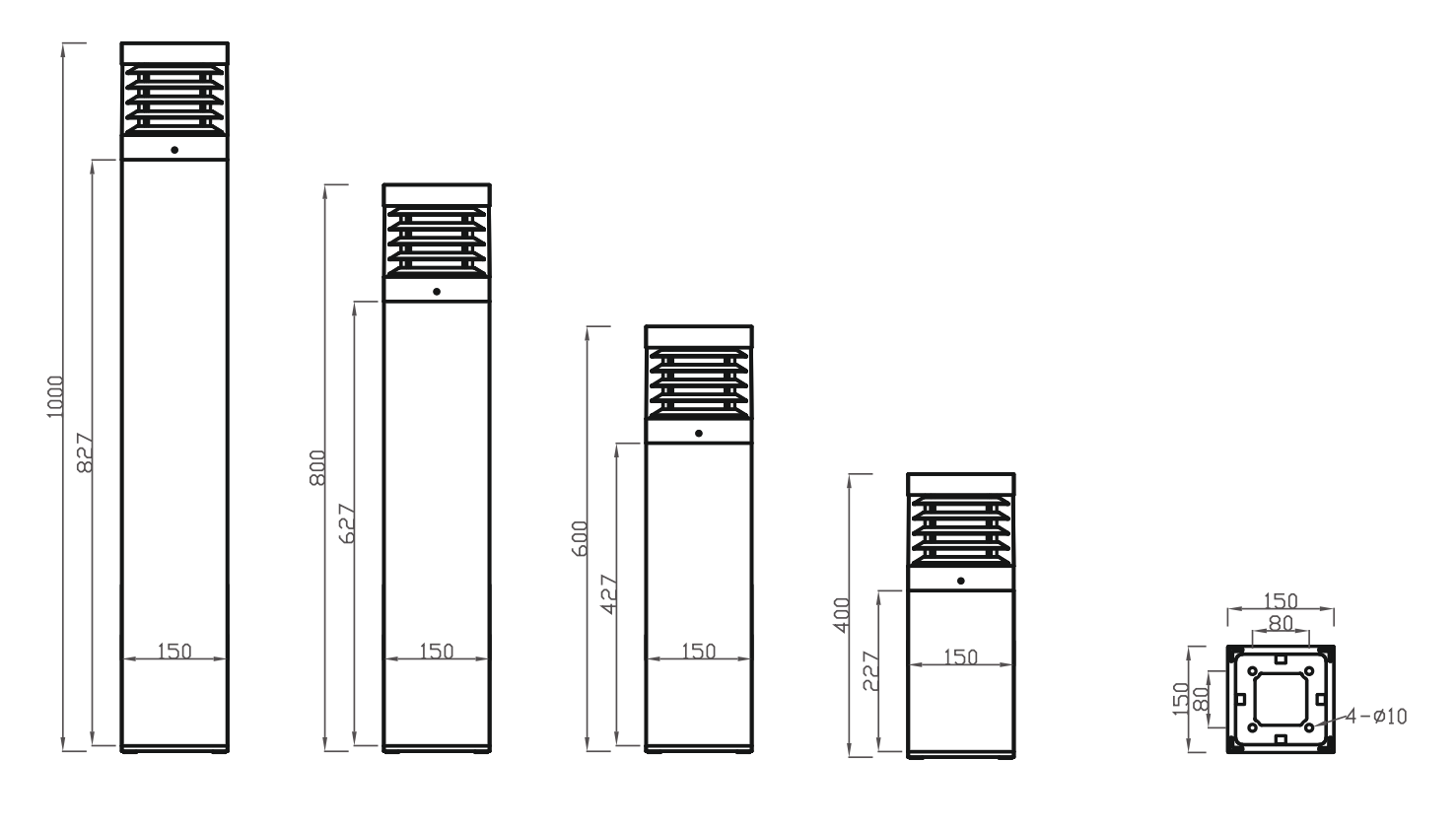

(Refer technical drawing for details)
5-year Luzion warranty—covers LED, driver, housing, louver, and finish.
Q1: What LED & driver options?
A1: Original CREE, Osram, Lumileds LED with Meanwell, Philips, Tridonic, Eaglerise drivers.
Q2: Is this glare-free for pathways or driveways?
A2: Yes, louvered PC design eliminates direct glare and provides soft, layered pathway lighting.
Q3: Is service/maintenance easy?
A3: Yes, fully removable modular head—tool-less access to driver/LED for quick maintenance.
Q4: Custom finish, size, or CCT possible?
A4: Yes, available in custom finishes, color temperatures, and branding on request.
The Marceno Bollard Light (LZBLMAR064LOUVER) is a premium louvered architectural LED Bollard Light, crafted to deliver elegant, glare-free Pathway Lighting and Landscape Lighting for high-end commercial, residential, and public projects. Its robust square-profile body (150x150mm) and iconic layered-louver diffuser design create a soft, controlled light with exceptional visual comfort—ideal for modern parks, driveways, resorts, and plazas.
Engineered with a heavy-duty die-cast aluminum body, Marceno features an injection-molded anti-UV PC diffuser and proprietary heatsink for lasting performance and minimal maintenance. The entire head module is removable, enabling rapid access. Internally, it uses only CREE, Osram, or Lumileds LED chips, powered by your choice of Meanwell, Philips, Tridonic, or Eaglerise drivers—ensuring world-class reliability, easy sourcing, and project documentation.
Every unit includes anti-rust mounting, an IP65/IP66 waterproof driver box, tamper-proof anchor plate, and full powder-coat options for every project requirement. Marceno is available in 400/600/800/1000mm heights and standard or custom colors—making it an ideal Outdoor Bollard Light for architectural, garden, and pathway lighting applications.
Contemporary louvered LED Bollard Light with 150x150mm square body, layered PC diffuser
CREE / Osram / Lumileds COB LED (LOI-ready, tender-compliant, project grade)
Driver options: Meanwell, Philips, Tridonic, Eaglerise (universal voltage, surge-protected)
Entire modular head is quickly removable—easy driver/LED service
Die-cast aluminum, proprietary heatsink, vandal-proof assembly
Injection-molded PC louver for glare-free, architectural lighting
IP65 waterproof, IK08 impact-resistant, and rust-protected design
Anti-rust mounting plate, tamper-resistant, all-weather rugged
Finishes: Black, Silver, RAL7043, RAL7016, or custom powder-coat
5-year Luzion warranty (LED, driver, housing)
| Parameter | Specification |
|---|---|
| Product Code | LZBLMAR064LOUVER |
| Brand | Luzion Lighting Pvt. Ltd. |
| Body/Profile | 150 × 150mm square |
| Heights | 400mm, 600mm, 800mm, 1000mm |
| LED Chip | CREE / Osram / Lumileds |
| Driver | Meanwell / Philips / Tridonic / Eaglerise |
| Wattage | 10W / 15W / 20W / 25W / 30W |
| Lumen Output | 500Lm – 1500Lm |
| Color Temperature (CCT) | 2700–6500K, selectable |
| CRI | ≥80 |
| Diffuser/Lens | Injection-molded anti-UV PC louver, glare-free |
| Mounting Base | 150 × 150mm, 4xØ10mm anchors (80/150mm pitch) |
| Driver Box | IP66 protected, modular accessible |
| Finish | Black, Silver, RAL7016, RAL7043, custom powder-coated |
| IP/IK Rating | IP65 Waterproof, IK08 Impact Resistant |
| Warranty | 5 years (all components) |
Profile: 150 × 150mm square
Available Heights: 400mm, 600mm, 800mm, 1000mm
Mounting Plate: 150 × 150mm, 4ר10mm anchor
Removable Head: Modular, easy driver/LED access
(Refer technical drawing for details)
5-year Luzion warranty—covers LED, driver, housing, louver, and finish.
Q1: What LED & driver options?
A1: Original CREE, Osram, Lumileds LED with Meanwell, Philips, Tridonic, Eaglerise drivers.
Q2: Is this glare-free for pathways or driveways?
A2: Yes, louvered PC design eliminates direct glare and provides soft, layered pathway lighting.
Q3: Is service/maintenance easy?
A3: Yes, fully removable modular head—tool-less access to driver/LED for quick maintenance.
Q4: Custom finish, size, or CCT possible?
A4: Yes, available in custom finishes, color temperatures, and branding on request.
| PRODUCT CODE | HOLDER | WATT | SIZE | PF | PØ | CCT | CRI | LM/W |
|---|---|---|---|---|---|---|---|---|
| LZBLMAR064LOUVER | CREE / Osram / Lumileds | 10/15/20/25/30W | 10/15/20/25/30W | >0.95 | Ø10mm | 2700–6500 | ≥80 | Up to 50 |
