Orvane LED Bollard Light

Product Code- LZBLORV029

Categories Bollard Lights

Send an Enquiry

Share With

Product Details

Description

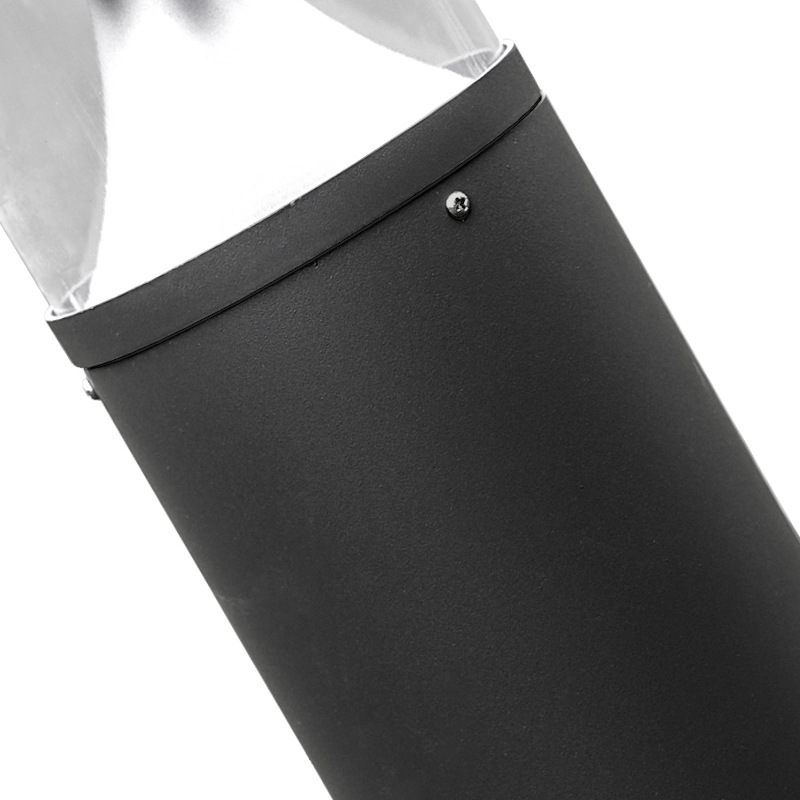

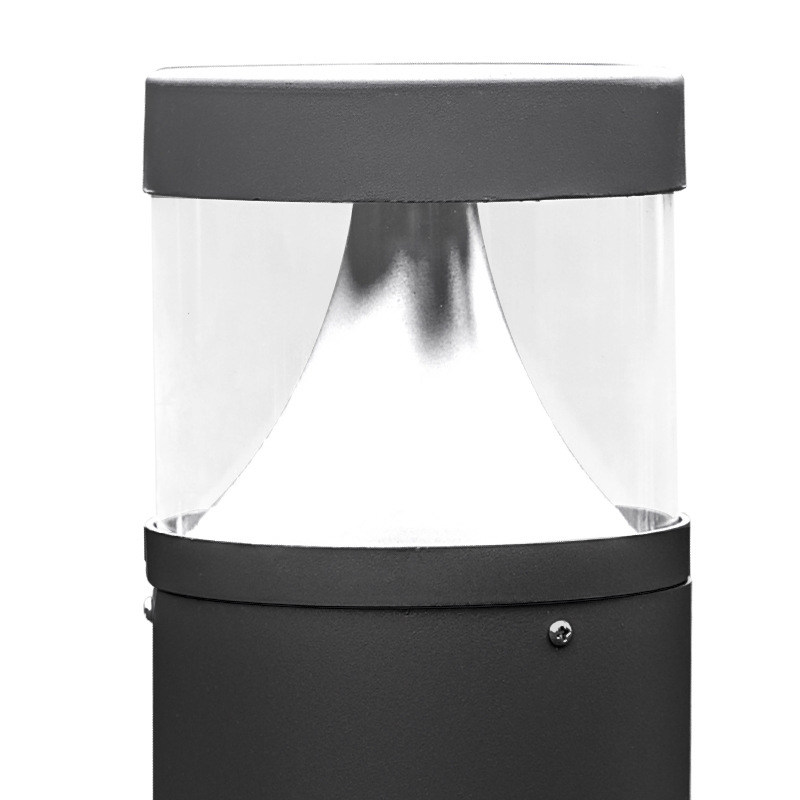

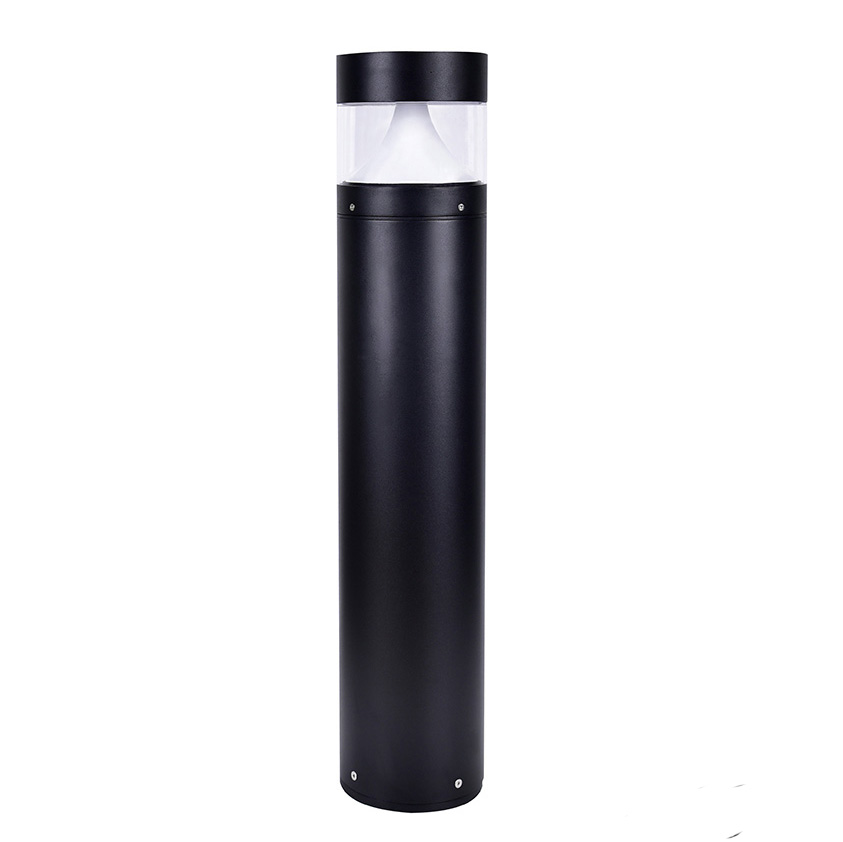

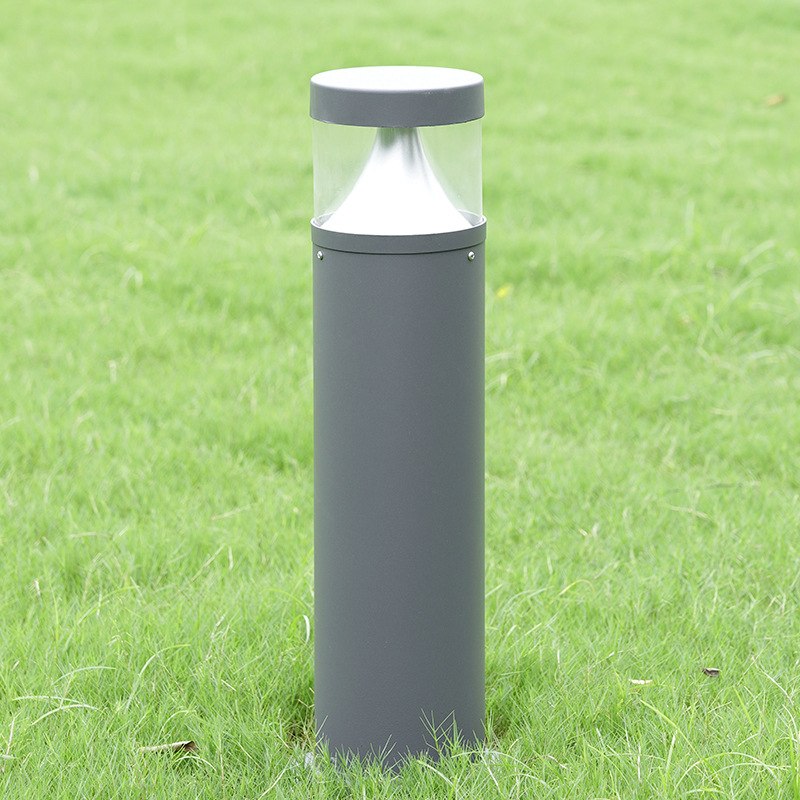

The Orvane LED Bollard Light by Luzion is a high-performance outdoor bollard light that seamlessly combines durability and elegance for modern garden, pathway, and landscape lighting applications. Constructed with a sturdy die-cast and extruded aluminum alloy body and featuring anti-UV injection polycarbonate and opal PMMA diffusers, Orvane delivers bright, efficient, and vandal-resistant lighting. It’s perfect for enhancing security and visual appeal across walkways, car parks, prestigious gardens, retail, and amenity areas. With premium Lumileds 2835, OSRAM, CREE LED chips and several trusted driver options including Tridonic, Meanwell, Philips, Eagle Rise offers consistent performance and energy efficiency.

Designed for convenience, this waterproof outdoor bollard light includes a removable head for easy maintenance and tamper-proof fixings for added protection. Its broad beam angle of 322.6° provides uniform, glare-free illumination, making it ideal for modern waterproof bollard light installations in rugged environments. With excellent IP65 waterproofing and IK08 impact resistance, Orvane guarantees long-lasting performance in any weather. Backed by a comprehensive 5-year warranty, it is one of the best outdoor bollard lights for garden and commercial spaces.

Key Features & Benefits

Durable die-cast aluminum and extruded aluminum alloy body.
High-efficiency Lumileds 2835, OSRAM, CREE LED chips for superior brightness.
Anti-UV injection polycarbonate and opal PMMA diffuser for high efficiency and vandal resistance.
Anti-glare tubes and boards reduce visual discomfort.
Removable head for easy access to LEDs and drivers.
Tamper-proof fixings enhance security.
Available in multiple color temperatures (2700K–6500K).
IP65 rated for waterproof and rust-proof protection.
IK08 rated for impact resistance.
Suitable for garden, walkways, car parks, retail, and amenity lighting.
Backed by a 5-year manufacturer's warranty.

Specification

Parameter	Specification
Product Code	LZBLORV029 A/B/C
Brand	Luzion
LED Type	Lumileds 2835, OSRAM, CREE
Wattage	10W / 15W / 20W
Lumen Output	700Lm / 1050Lm / 1400Lm
CCT Range	2700K–6500K
CRI	≥80
Input Voltage	100-277V AC
Beam Angle	322.6°
Material	Die-cast & Extruded Aluminum, PC / PMMA Diffuser
Finish Colors	Black, Silver, RAL7043, RAL7016
IP Rating	IP65
IK Rating	IK08
Lifespan	≥50,000 hours
Warranty	5 years

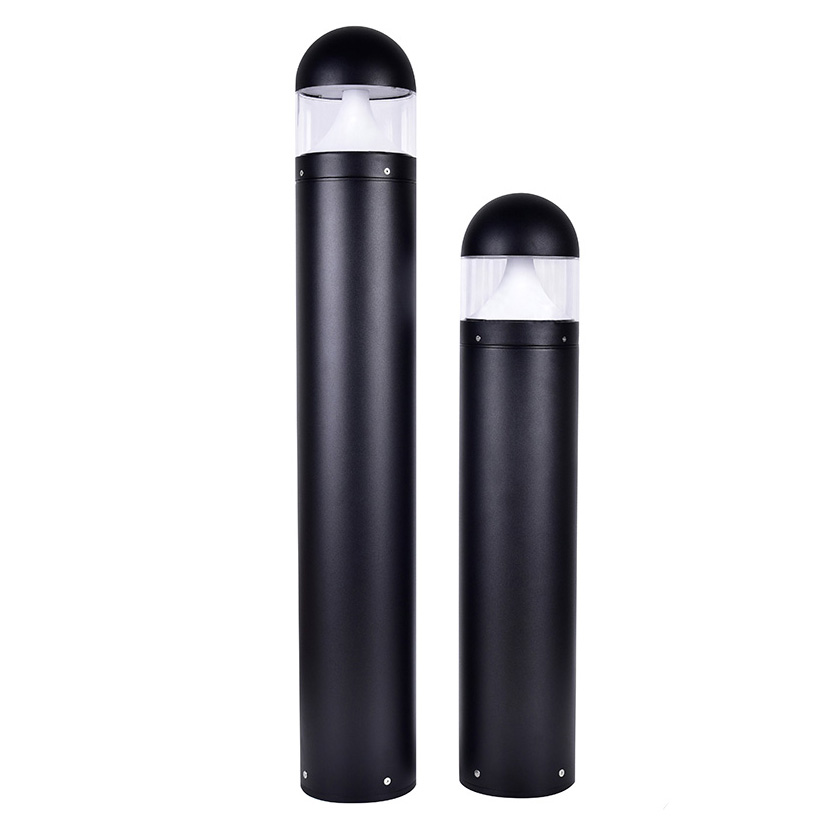

Dimension

Type A:

Diameter: Ø160 mm
Height: 1000 mm (total), 800 mm (option)
Cap Height: 789.5 mm (for 1000 mm), 588.5 mm (for 800 mm)

Type B:

Diameter: Ø160 mm
Height: 1000 mm (total), 800 mm (option)
Cap Height: 806 mm (for 1000 mm), 606 mm (for 800 mm)

Type C:

Diameter: Ø160 mm
Height: 1000 mm (total), 800 mm (option)
Cap Height: 823.5 mm (for 1000 mm), 623.5 mm (for 800 mm)

Base Plate (all types):

Bolt Circle Diameter: 99.88 mm
Mounting Holes: 3 holes of Ø13 mm on 86.5 mm radius

Warranty

5 Years Manufacturer Warranty covering LED performance and manufacturing defects.

FAQs

What is the protection rating of Orvane LED Bollard Light?
Orvane features an IP65 waterproof and dustproof rating, plus IK08 impact resistance for tough conditions.
Which LED and drivers are used?
It uses high-quality Lumileds 2835 LEDs with premium drivers such as Osram, Tridonic, and Meanwell.
Can I customize the color temperature?
Yes, options range from 2700K to 6500K for versatile lighting moods.
Is maintenance easy?
Yes, a removable head allows quick access to LEDs and drivers.
Where is it best to install this bollard light?
Ideal for garden, pathways, car parks, retail, and outdoor amenity areas.
