Tivano Bollard Light
Product Code: LZBLTIV059
Sleek, dome-head LED bollard built for elegance and endurance in outdoor architecture.
Categories Bollard Lights
Share With
Product Details
Specification
| Parameter | Specification |
|---|---|
| Product Code | LZBLTIV059 |
| LED Type | Lumileds 2835 / Osram / Cree |
| Wattage | 10W / 15W / 20W |
| Lumen Output | 600Lm / 900Lm / 1200Lm |
| Color Temperature (CCT) | 2700–6500K, 3CCT selectable |
| CRI | ≥80 |
| Input Voltage | 100–277V AC |
| Diffuser Material | Opal anti-UV polycarbonate |

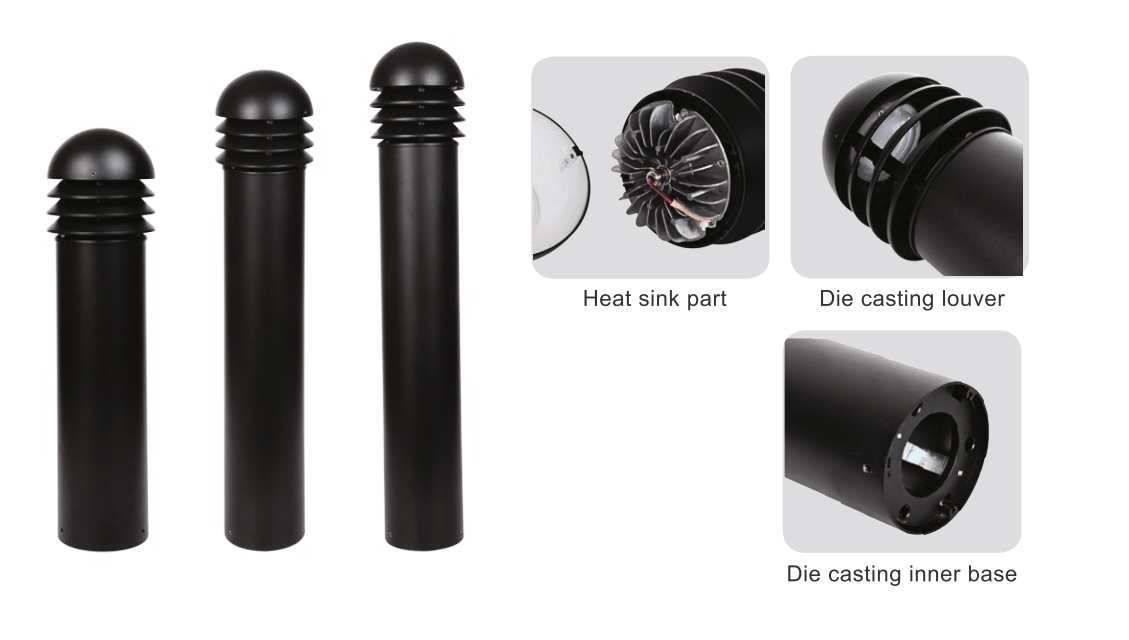

| Louvers | Die-cast aluminum, concentric design |

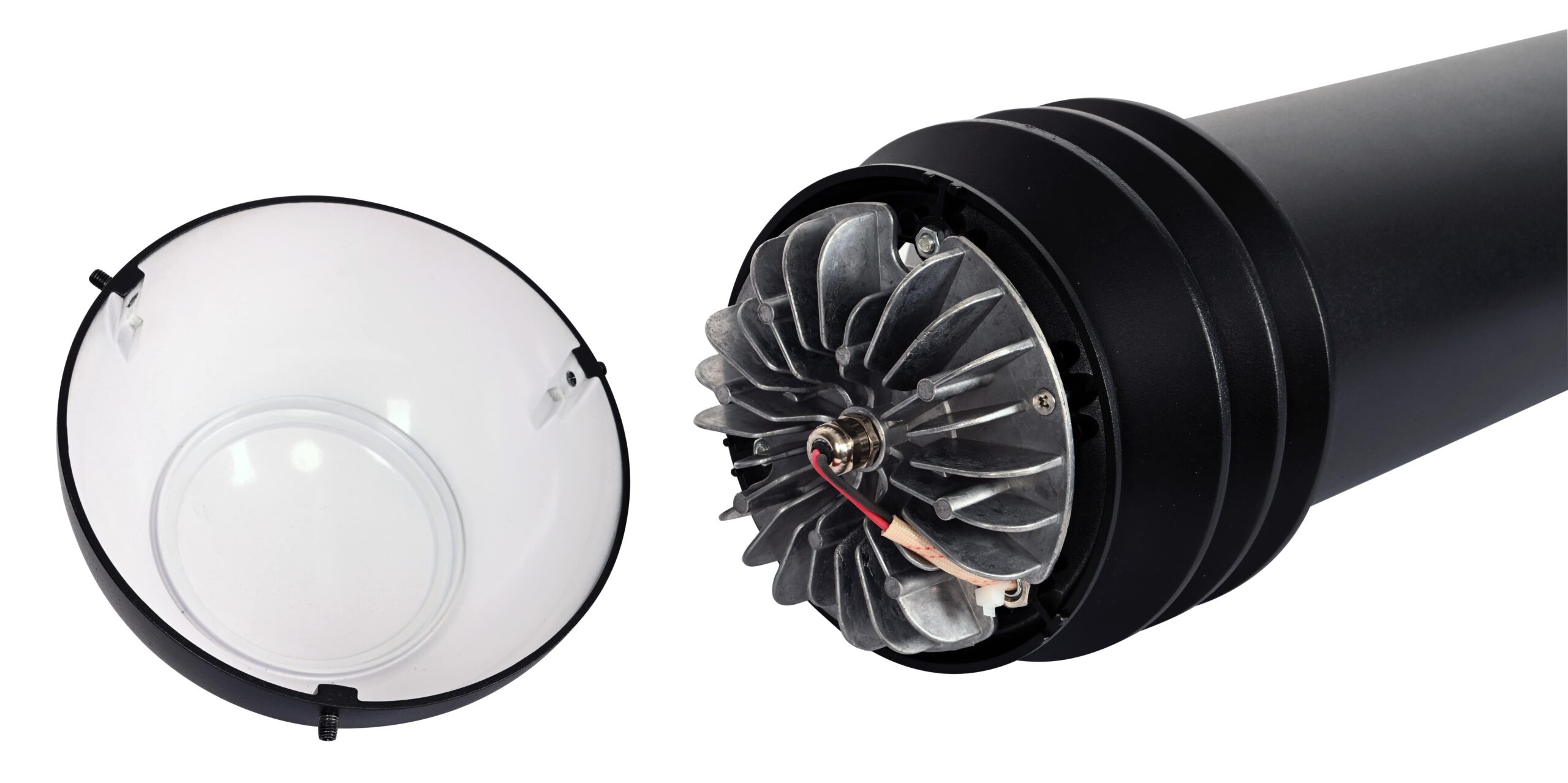

| Heatsink | Oversized die-cast for superior cooling |
| Driver Options | Tridonic / Meanwell / Philips / Eaglerise |
| Finish Colors | Black, Silver, RAL7043, RAL7016 (custom) |
| Heights | 600mm / 800mm / 1000mm |
| Diameter | 152mm head, 128mm shaft |
| Mounting | Anti-vandal die-cast base |
| IP Rating | IP65 Waterproof |
| IK Rating | IK08 Impact Resistant |
| Warranty | 5 Years |

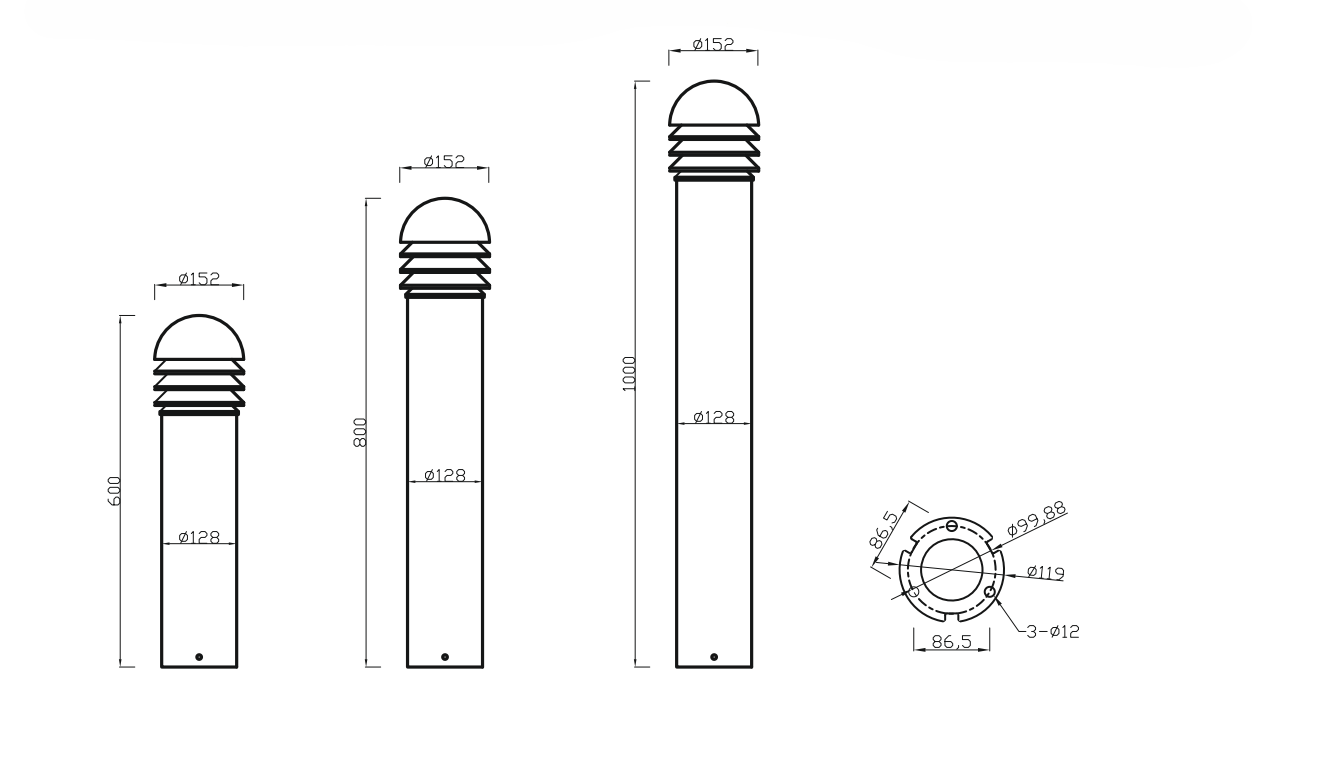

Dimension
Head Diameter: Ø152mm
Shaft Diameter: Ø128mm
Available Heights: 600mm / 800mm / 1000mm

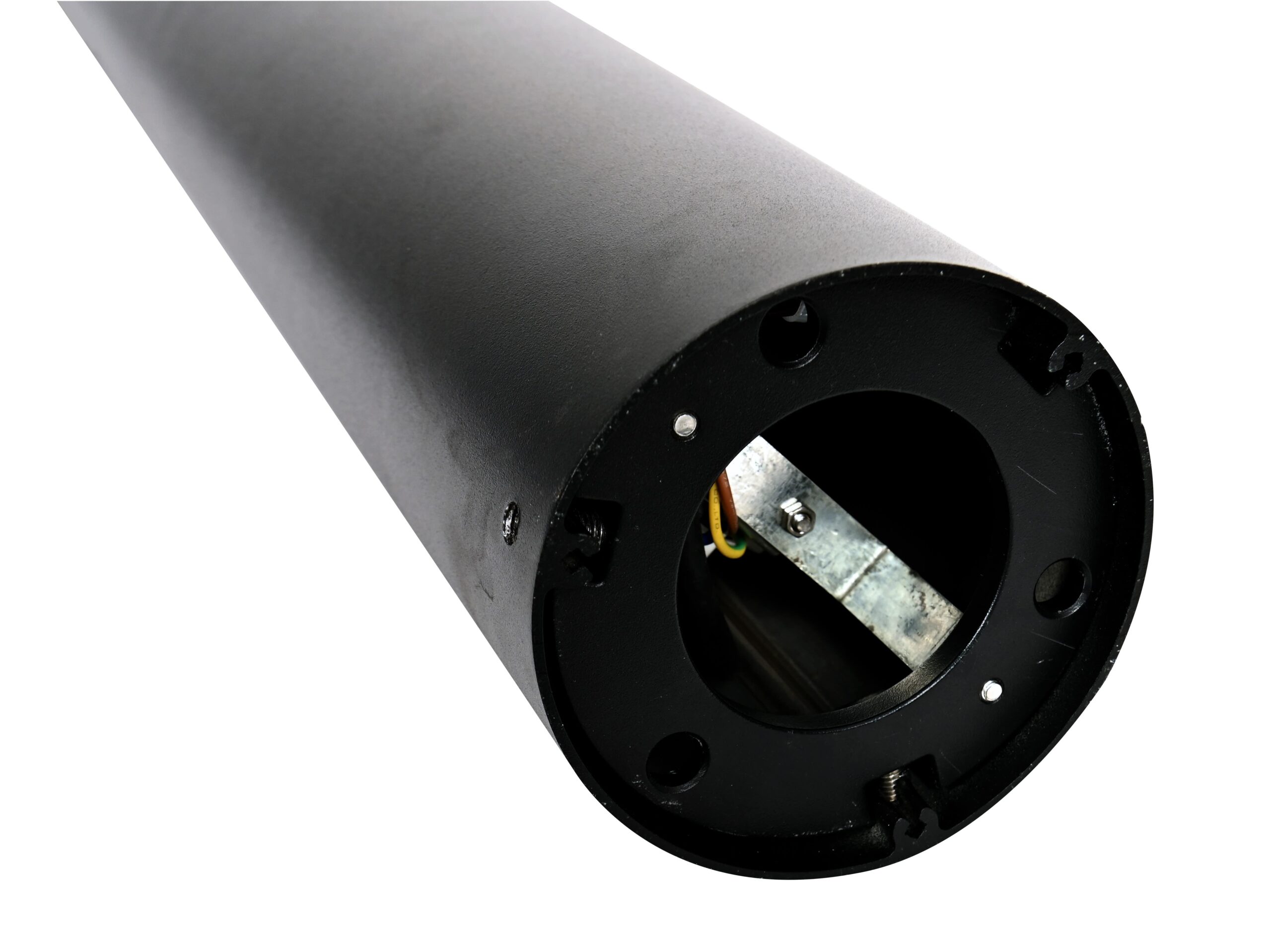

Base Mounting: Anti-vandal inner base, 3 anchor points for stability
Warranty
5-year Luzion comprehensive warranty — covers LED, driver, housing, diffuser, and mechanical parts.
FAQs
Q1: Is Tivano suitable for public or coastal installations?
A1: Yes, its IP65 waterproof and IK08 impact ratings ensure superior outdoor reliability.
Q2: Which LED and driver brands are used?
A2: Genuine Lumileds 2835, Osram, Cree LEDs, and Tridonic, Meanwell, Philips, Eaglerise drivers.
Q3: Does the dome louvre design reduce glare?

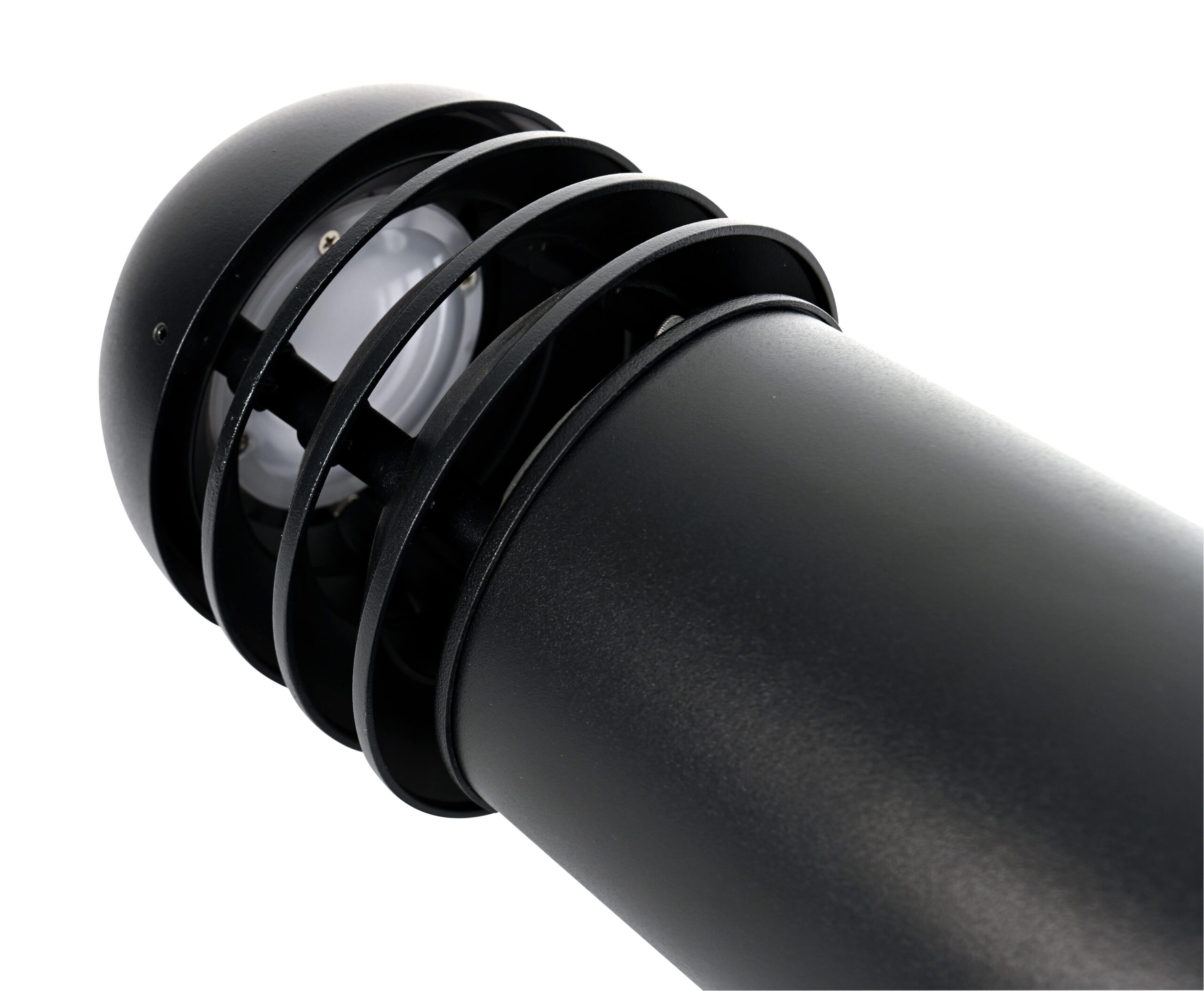

A3: Absolutely — the multi-ring louvre head ensures soft, focused illumination.
Q4: What customization options are available?
A4: Choose from multiple heights, custom RAL colors, and LED/driver configurations.
Q5: Is maintenance simple?
A5: Yes — modular design allows easy LED and driver access for fast servicing.
| PRODUCT CODE | HOLDER | WATT | SIZE | PØ | CCT | CRI | LM/W |
|---|---|---|---|---|---|---|---|
| LZBLTIV059 | Lumileds 2835/Osram/Cree | 10/15/20W | 600/800/1000 mm | Ø128mm shaft, 3×Ø12mm | 2700–6500K | ≥80 | 60 (10W)/60 (15W)/60 (20W) |
