Ferrovia LED Pit Light
PL Lamp 2G7 4 Pin
Skyline Led Street Light
Wenilo Bollard Light
Product Code: LZBLWEN068A

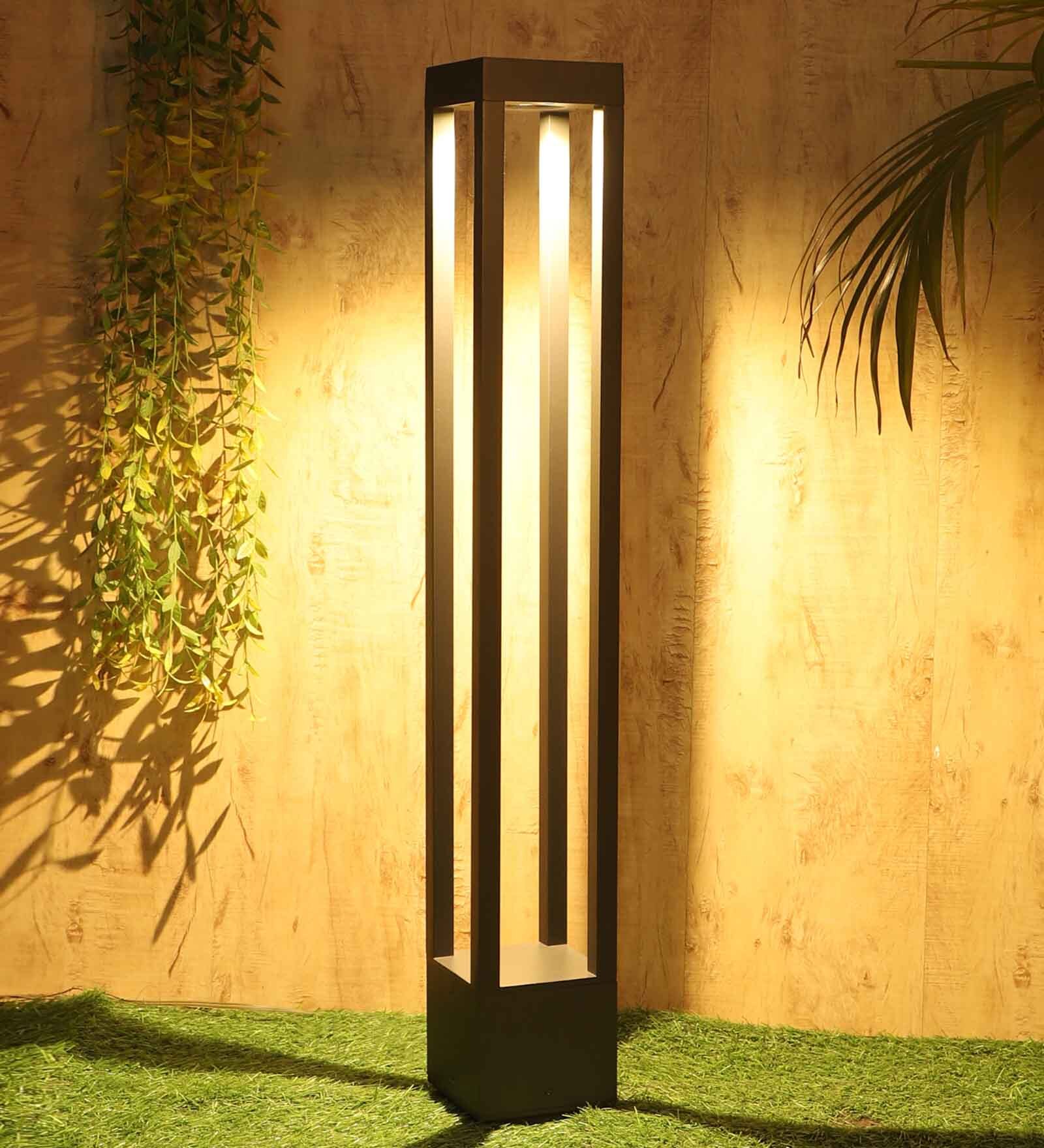

Architectural quad-frame LED bollard delivering luxury outdoor illumination with Luzion’s 5-year all-inclusive warranty.
Categories Bollard Lights
Share With
Product Details
Specification
| Parameter | Specification |
|---|---|
| Product Code | LZBLWEN068A |
| Brand | Luzion Lighting Pvt. Ltd. |

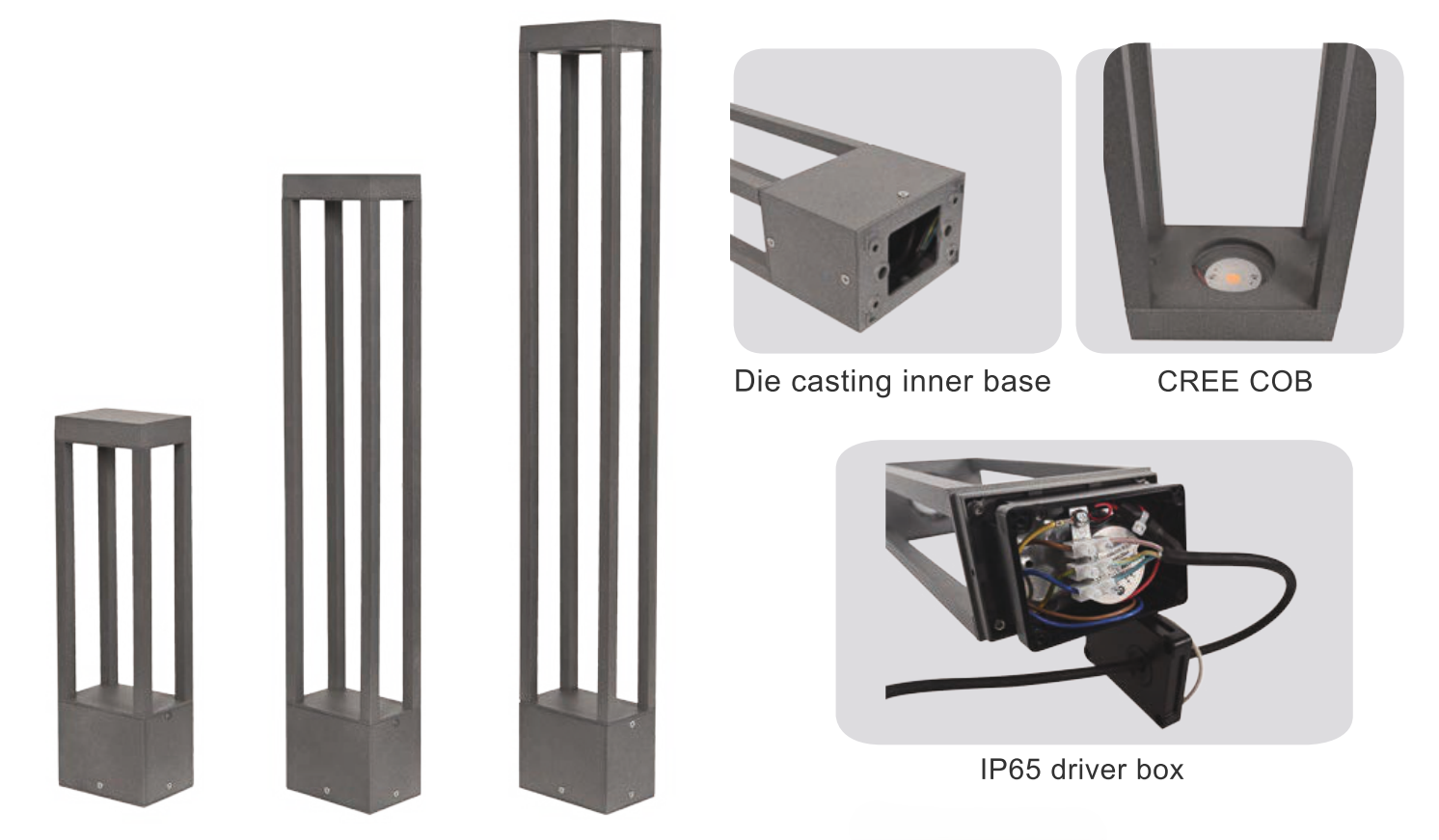

| Body/Profile | 4-pillar quad open frame, 120×120mm or 80×80mm |
| Heights | 400 / 600 / 800 mm |
| LED | CREE COB |
| Driver | Meanwell/Philips/Tridonic/Eaglerise |
| Wattage | 10W |
| Output (Lumens) | 650Lm |
| CCT | 2700–6500K selectable |
| CRI | ≥80 |

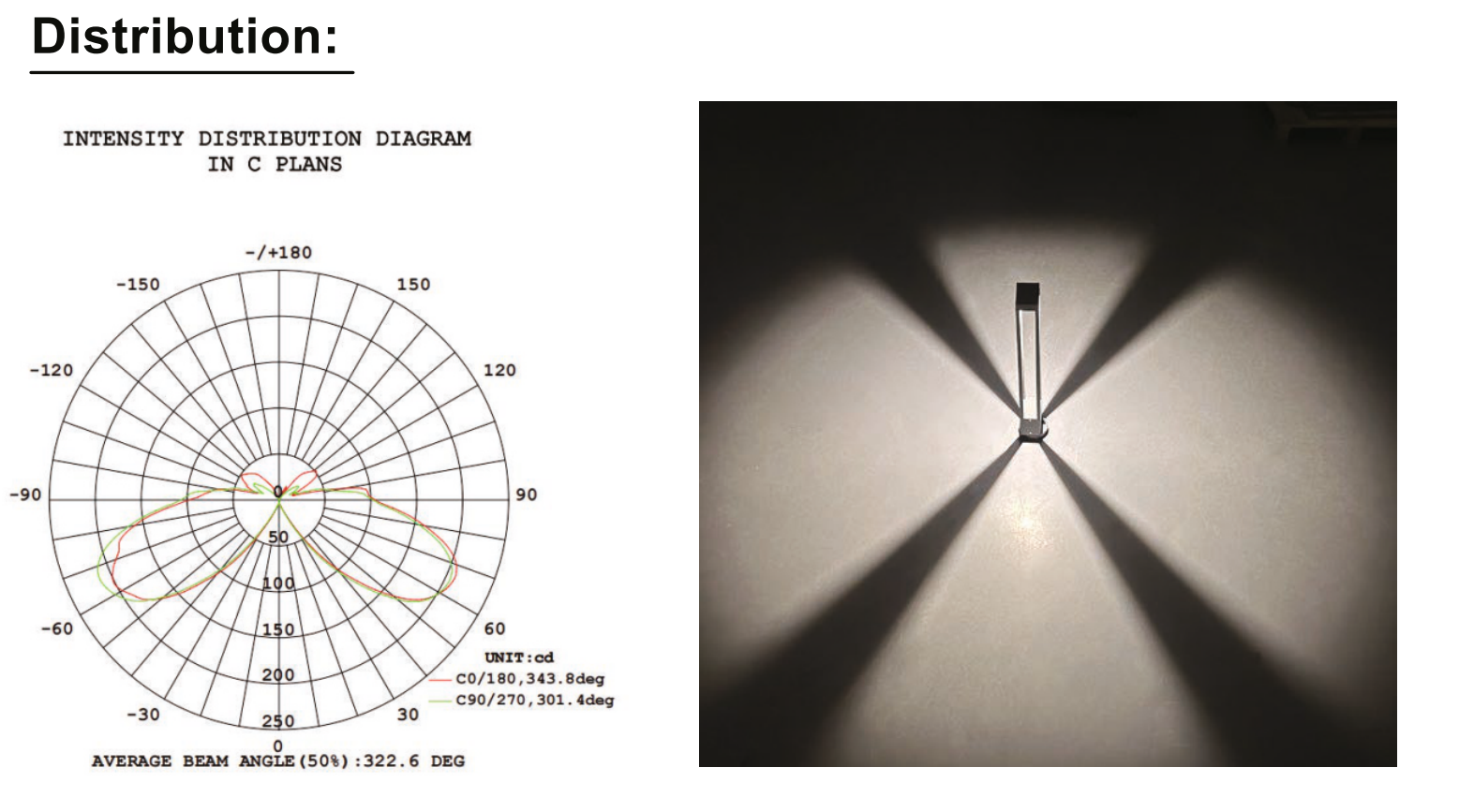

| Optics | Clear anti-UV glass with X-pattern asymmetric beam |
| Mount Plate | 120×120mm or 80×80mm, anchor: 2×Ø9mm, modular IP65 driver box |
| Finish | Black, Silver, RAL7043, RAL7016, custom |
| IP/IK | IP65 / IK08 |
| Warranty | 5 years (all-inclusive) |

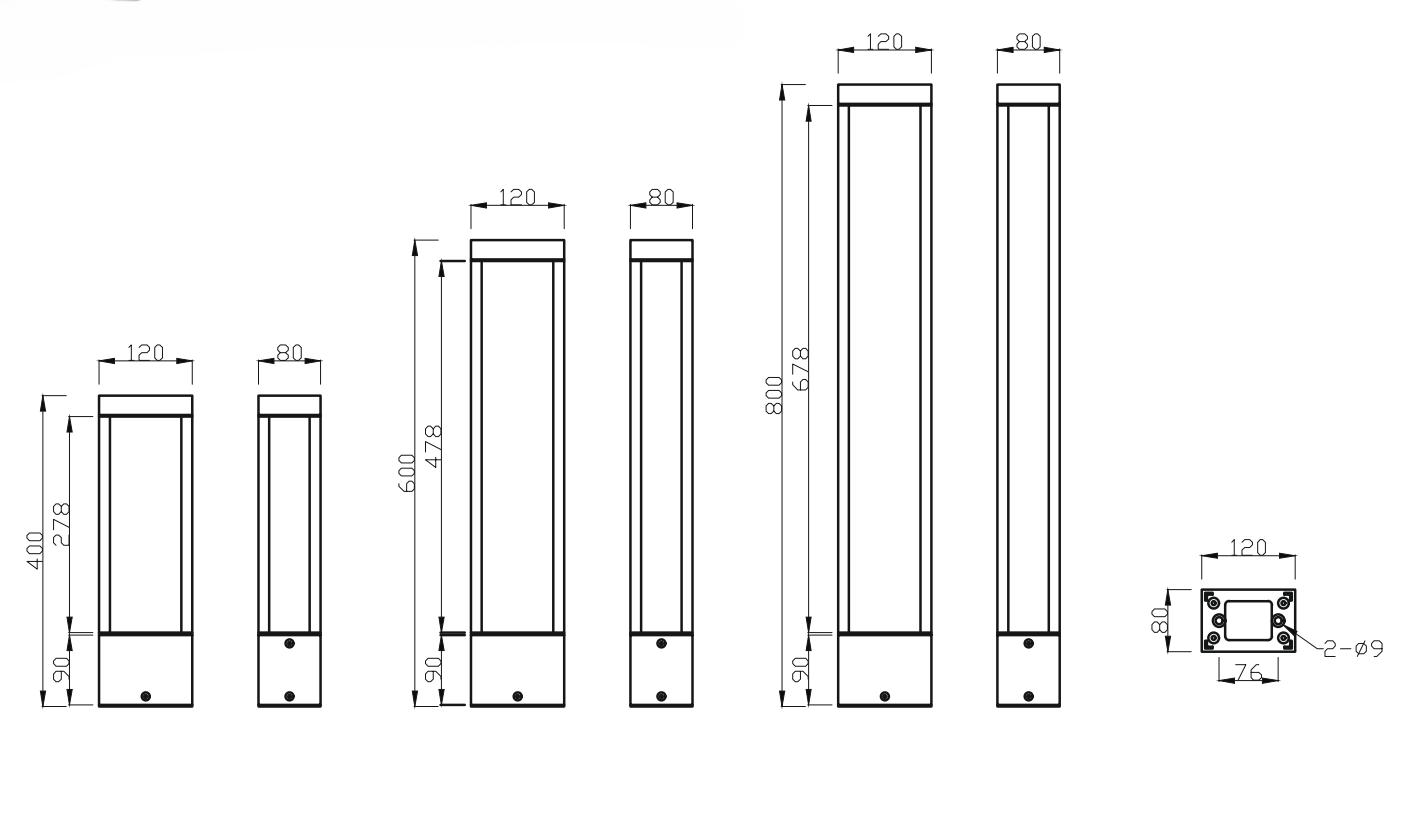

Dimension
- Profile: 120×120mm or 80×80mm, open 4-pillar frame
- Heights: 400, 600, 800 mm
- Mount Plate: As drawing (2×Ø9mm, 76mm pitch)
- Driver Box: IP65, modular and tool-accessible
Warranty
5-year Luzion warranty—full coverage for LED, driver, housing, surface finish.
FAQs
Q1: LED & driver kaunse brands hain?
A1: Genuine CREE COB, backed by Meanwell, Philips, Tridonic, Eaglerise global driver options.
Q2: Kya yeh high-traffic projects ke liye suitable hai?
A2: Yes—die-cast body, anti-vandal anchor, IP65/IK08, fully modular.
Q3: X-pattern ya custom lighting?
A3: Signature multi-X beam by design, options for custom optics possible.
Q4: Custom powder-coating/branding chahiye?
A4: Bilkul—color, height, and customer branding possible.
| PRODUCT CODE | HOLDER | WATT | SIZE | PF | PØ | CCT | CRI | LM/W |
|---|---|---|---|---|---|---|---|---|
| LZBLWEN068A | CREE COB Integrated | 10W | 400 / 600 / 800 | >0.95 | Ø9mm | 2700–6500 | ≥80 | 65 |
