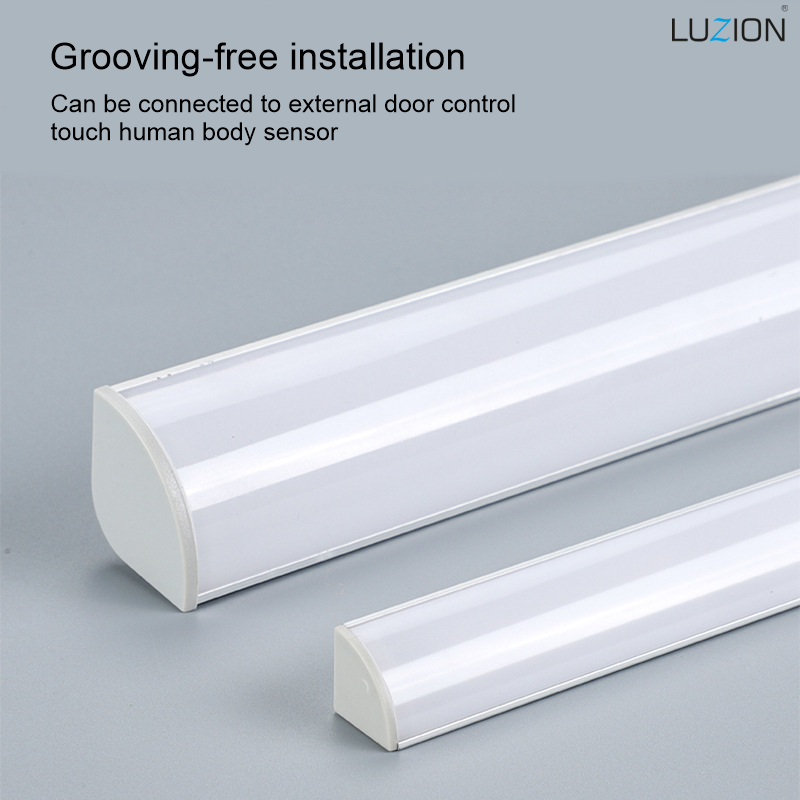

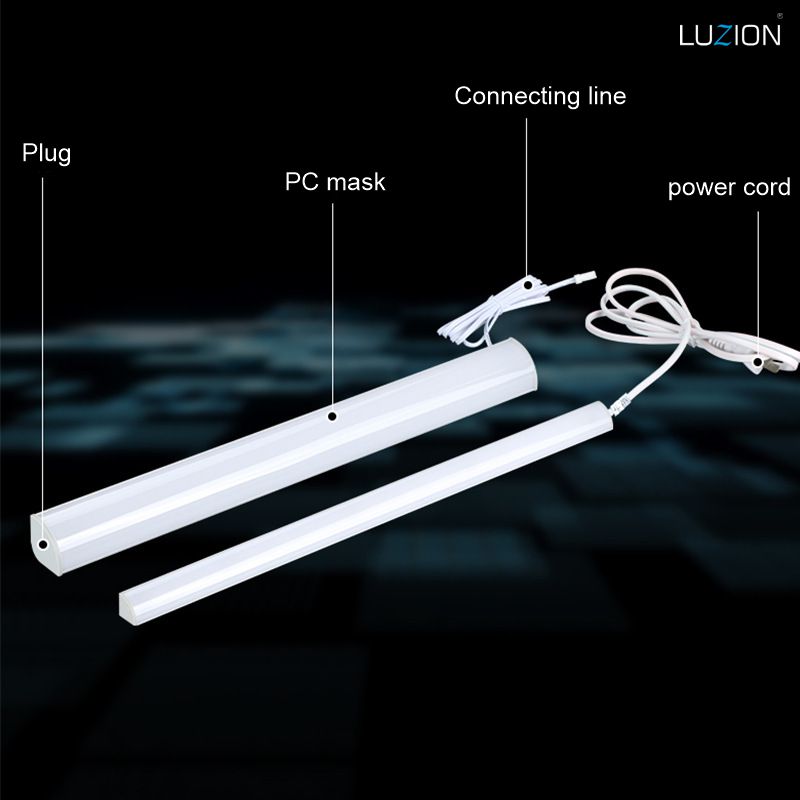

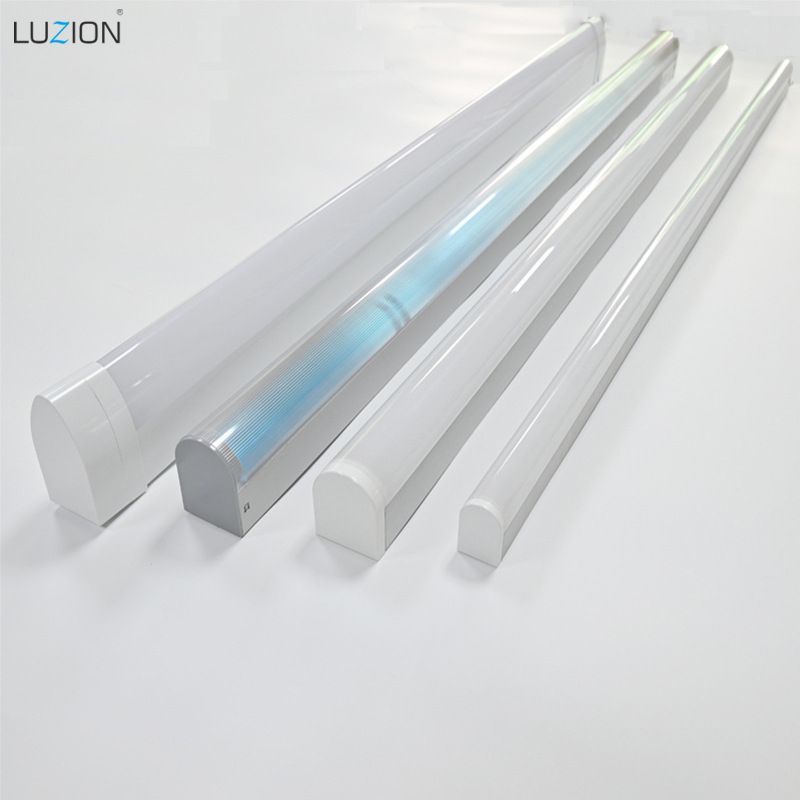

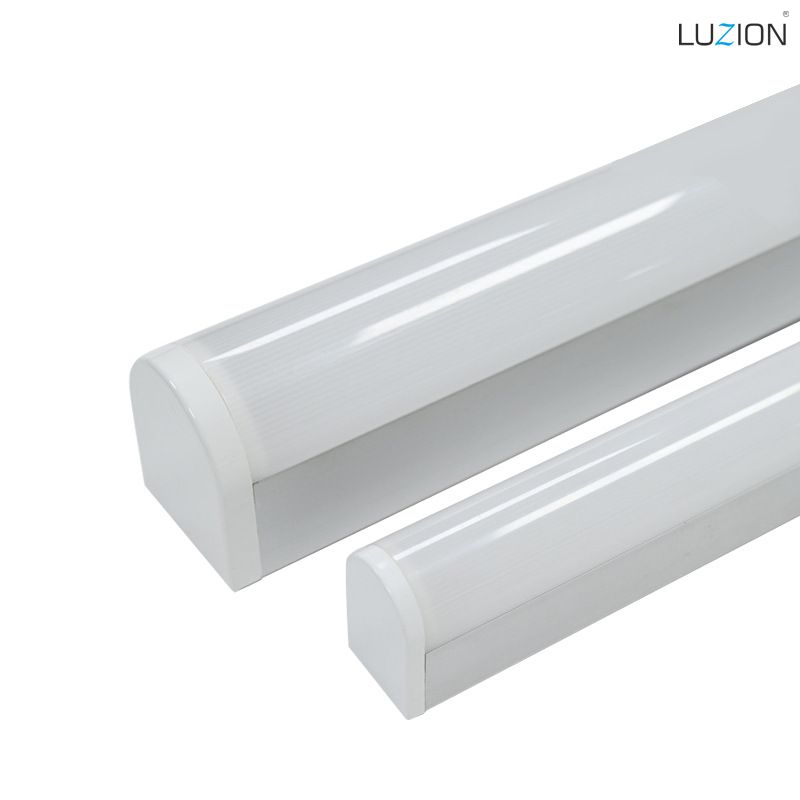

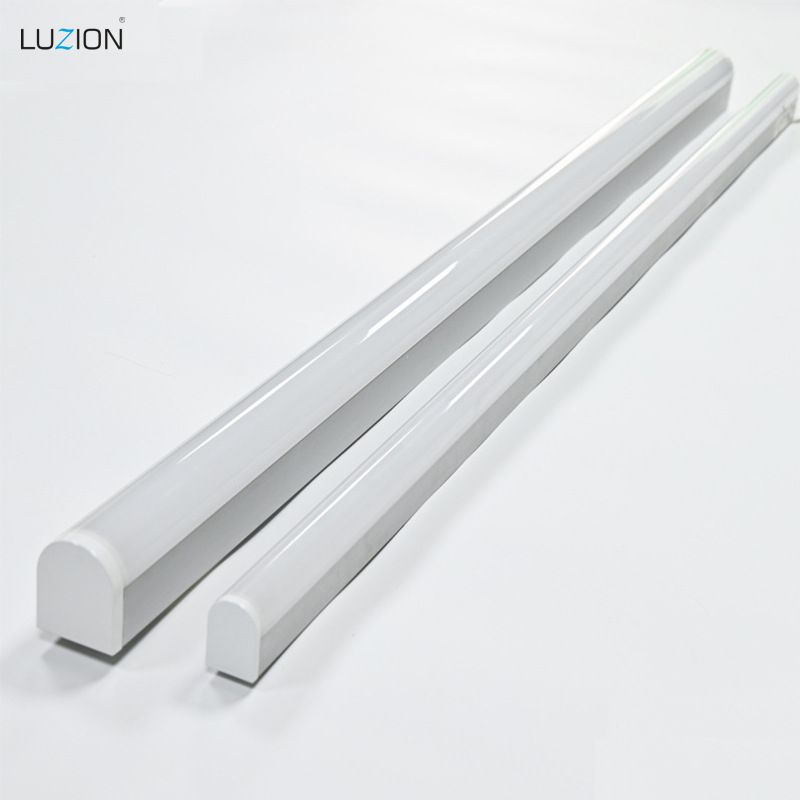

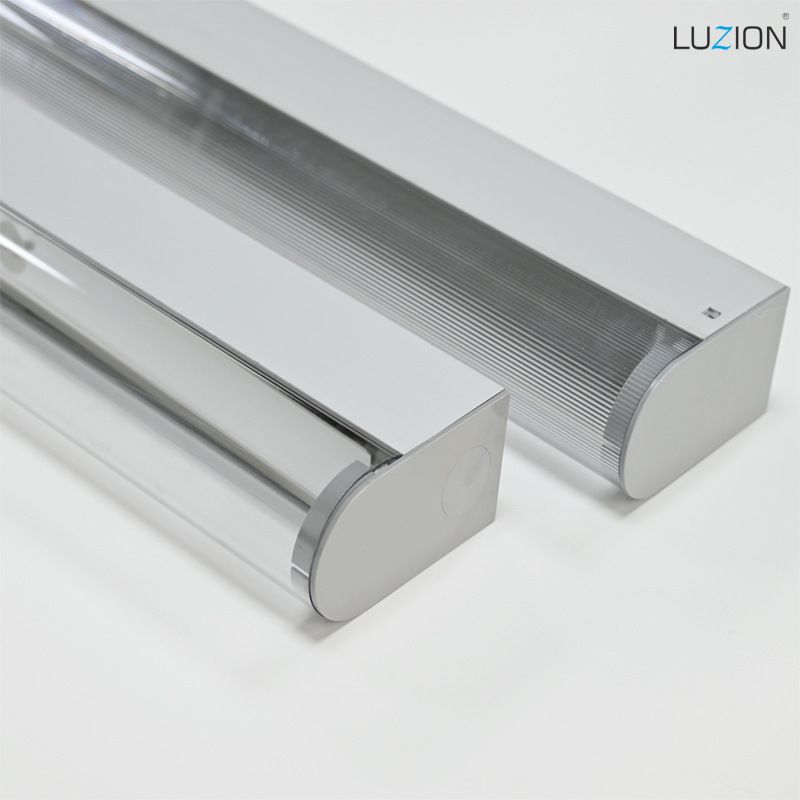

Tublina T5 LED Tube Light
A new generation T5 Batten for multipurpose application made from polycarbonate housing & diffuser
Categories LED Tubelight, Commercial Lighting
Share With
Product Details
Specification
| Feature | 10W | 18/20W | 22W |
|---|---|---|---|
| System Wattage | 10W ± 10% | 18/20W ± 10% | 22W ± 10% |
| Voltage Range | 100–300V AC | 100–300V AC | 100–300V AC |
| Operating Voltage | 220–240V AC | 220–240V AC | 220–240V AC |
| Frequency | 50Hz | 50Hz | 50Hz |
| Power Factor | >0.9 | >0.9 | >0.9 |
| Efficiency | >85% | >85% | >85% |
| Lumens per Watt | 100 lm/W | 100 lm/W | 100 lm/W |
| CCT | 6500K | 6500K | 6500K |
| CRI | >80 | >80 | >80 |
| Beam Angle | 120° | 120° | 120° |
| Material | PC Co-Extruded (Opaque & Opal) | PC Co-Extruded (Opaque & Opal) | PC Co-Extruded (Opaque & Opal) |
| Dimension (mm) | 590 × 22 × 37 | 1100 × 22 × 37 | 1175 × 22 × 37 |
| IP Rating | IP20 | IP20 | IP20 |
| Mounting Type | Internal | Internal | Internal |
| Application | Indoor | Indoor | Indoor |

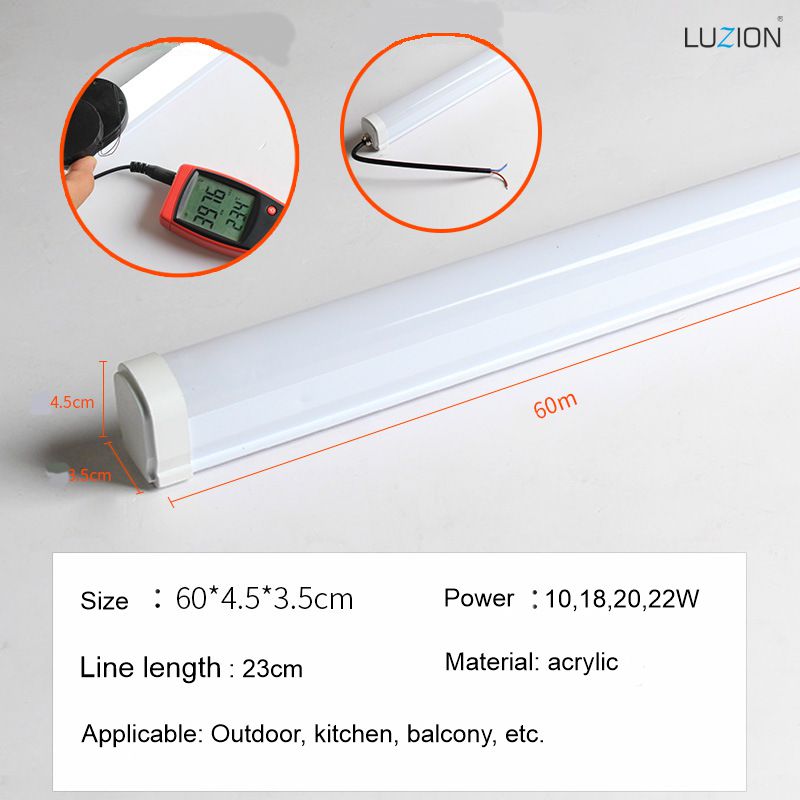

Dimension
10W: 590 x 22 x 37 mm
18/20W: 1100 x 22 x 37 mm
22W: 1175 x 22 x 37 mm
Designed to fit standard T5 fixtures with no additional modification.
Warranty
Warranty Period: 2 Years
Covers: Manufacturing defects only
| PRODUCT CODE | WATT | PF | CCT | CRI | THD | LM/W |
|---|---|---|---|---|---|---|
| LZTLTBLT510W | 10W | >0.95 | 6500 /3000/4000 | >80 | <15 | 100 |
| LZTLTBLT518W | 18W | >0.95 | 6500 /3000/4000 | >80 | <15 | 100 |
| LZTLTBLT520W | 20W | >0.95 | 6500 /3000/4000 | >80 | <15 | 100 |
| LZTLTBLT522W | 22W | >0.95 | 6500 /3000/4000 | >80 | <15 | 100 |
